A MID-SIZED TRACTOR WITH OVER-SIZED PERFORMANCE
The largest tractor in the Bad Boy Tractor stable is the 35hp 4035 Series thoroughbred available with or without a fully climate-controlled, all-weather cab. With our Hydro Max transmission, you no longer have to pre-set an engine throttle position. The engine RPM automatically increases or decreases as you move the forward/reverse foot pedals. Hydro Max is quiet, smooth, easy and eco-smart. The tractor is easy to maintain, with easy access to all serviceable parts and the eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power and lifting.

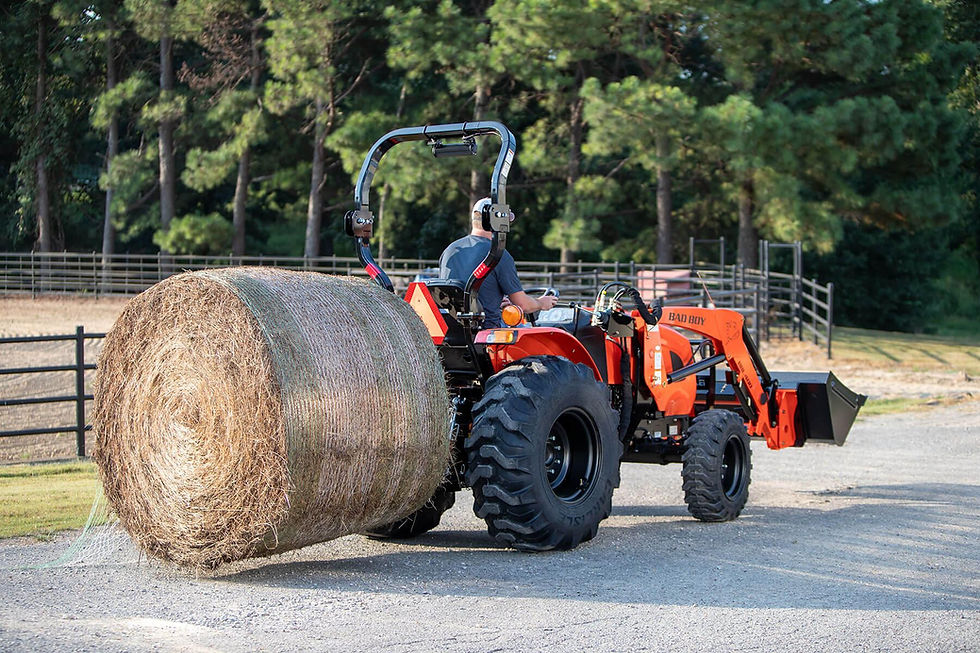

Bad Boy 4035 4WD Loader
Engine 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM(kw) 35 (26.2)
Displacement (in) (kw) 104.5 (1,714)
Fuel Tank (gal)(l) 7.1 (27)
Transmission HST
Number Of Speeds 3 Range
Brakes Wet, Multi-Disc
PTO HP (kw) 30 (22.5)
Type Hydro-Static Power Steering
3-Point Hitch Cat 1
Rear Remote Valve Optional (Up To 2)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point
2,425 (1,100)
Standard Bucket Size (in) 62"
Maximum Lift Height (in) 104"
Dig Depth (in) 1.8"
Lift Capacity To Full Height At Pivot Pin (lbs) 2,200
Breakout Force (lbs) 3,660
Shipping Weight (lbs)(loader only) 1,007
